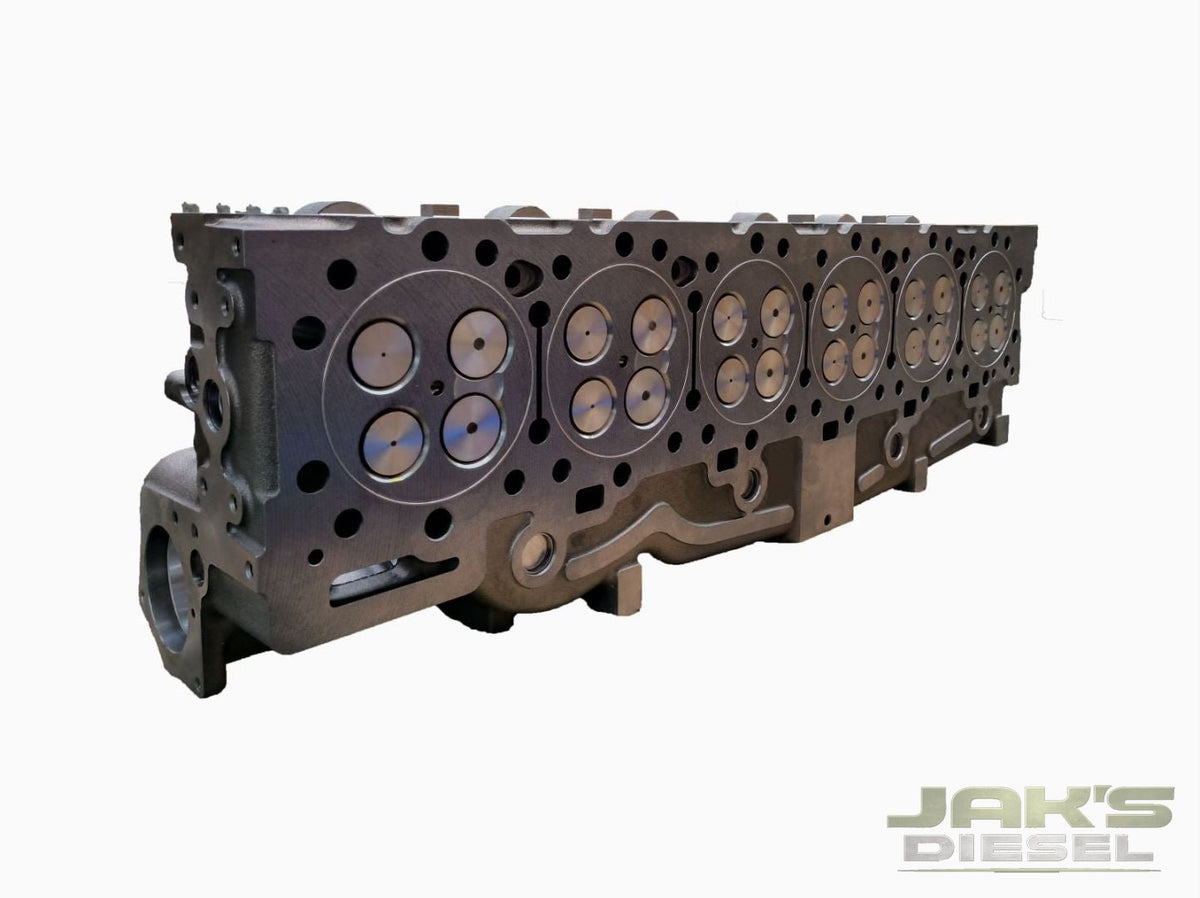

2239250 (223-9250) Caterpillar C15 / 3406E CGI Fire-Ring Loaded Cylinder Head – New, Stage 6 Inconel
| Brand | JAK's Diesel |
| Part Category | Cylinder Heads |
| Engine Make | Caterpillar |
| Engine Model | C15 · C15 Acert · 3406E |
| Condition | New |
| Stage / Tier | Stage 6 |
Our top-tier Stage 6 head for the Caterpillar 3406E, C15 and C15 ACERT, built to replace CAT 223-9250 (2239250). It combines a compacted graphite iron (CGI) casting, fire-ringed combustion seals and Inconel intake and exhaust valves for high-horsepower, high-cylinder-pressure builds. It arrives assembled and ready to bolt on, with no core to send back.
What's Included
- New CGI (compacted graphite iron) cylinder head casting, fire-ringed
- New intake and exhaust valves (Stage 6 — Inconel intake and Inconel exhaust)
- New valve springs, retainers and keepers
- Valve guides and valve stem seals installed
Not included: head gasket set, head bolts, injectors, rocker assemblies. You will need a fire-ring head gasket — ask us and we will quote it with your head.
Specifications
| Replaces | CAT 223-9250 (2239250) and cross-references below |
| Engine | Caterpillar 3406E, C15, C15 ACERT |
| Condition | New — no core |
| Assembly | Loaded (valves, springs, retainers, keepers, guides, seals) |
| Valve package | Stage 6 — Inconel intake and exhaust |
| Casting | CGI (compacted graphite iron) |
| Combustion seal | Fire-ringed — requires a fire-ring head gasket |
| Brand | JAK's Diesel |
Also available: Stage 1, Stage 2 and Stage 3 C15 heads.
Fitment
Fits Caterpillar 3406E, C15 and C15 ACERT on-highway engines that use the 223-9250 head family. We confirm fitment by engine serial number (ESN) or casting number before every head ships.
Replaces / Cross-Reference Part Numbers
OEM and reman numbers: 2239250, 223-9250, 0R9537, 0R7594, 10R5985, 1427341, 1604347, 2454324, 2436741, 2635055, 3128347, 3180476, 20R2647, 20R2648, 20R0409, 20R1107, 20R1108, 20R1109, 20R1183, 10R9547, 2672060, 2672063
Shipping, Core & Warranty
- No core charge, no core return. This is a new casting, not an exchange unit.
- Freight: ships crated by LTL freight. Freight is free to a commercial address with a forklift or dock. Residential, liftgate and terminal delivery can be quoted — call before you order.
- Local pickup: available in Henderson, CO by arrangement.
- Warranty: 1 year against defects in materials and workmanship.
Frequently Asked Questions
Is this head new or remanufactured?
New. It is a new casting assembled with new valvetrain components — not a rebuilt core.
Do I have to send back a core?
No. There is no core charge and nothing to return.
What else do I need to install it?
Plan on a new head gasket set and head bolts for the C15. They are not included. Message us and we will match the right kit to your engine serial number.
How do I confirm it fits my C15?
Send us your engine serial number (ESN) or the casting number from your old head. We verify fitment against 223-9250 before the head ships.
Does a fire-ring head need a special head gasket?
Yes. A fire-ringed head must be paired with a matching fire-ring head gasket. It is sold separately — ask us and we will quote the correct gasket with your head.
What is a CGI cylinder head?
CGI is compacted graphite iron. It is stronger and more resistant to cracking from heat cycling than standard gray-iron castings, which is why it is used on high-output and high-EGT builds.
How long does delivery take?
Heads are crated and handed to the LTL carrier in 1–2 business days. Transit is typically 2–5 business days depending on your location.
