Home/All Cylinder Head Parts/2239250 (223-9250) Caterpillar C15 / 3406E Loaded Cylinder Head – New, Stage 2 Inconel Exhaust

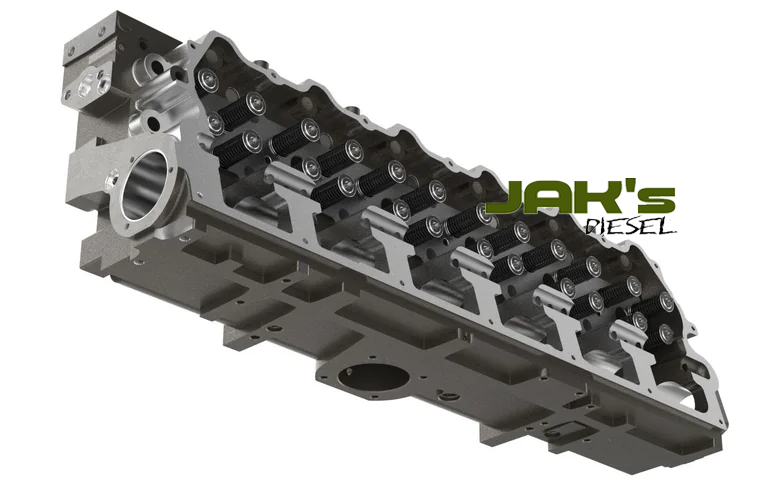

2239250 CAT C15 Stage 2 loaded cylinder head - new, JAK's Diesel
Caterpillar · Models: C15 / C15 Acert / 3406E

2239250 (223-9250) Caterpillar C15 / 3406E Loaded Cylinder Head – New, Stage 2 Inconel Exhaust

Commercial diesel cylinder head. Match the listed part and engine identifiers before ordering.
Warranty DetailsJAK's DieselMay Qualify for Free Freight
$3,649.00
In Stock
Fitment details

Want us to check the fit? Share any details you have below. All fields are optional. Your request will be included with your order, and a specialist may contact you before fulfillment.

Secure Checkout Review Return Policy Warranty Details May Qualify for Free Freight
JAK'S Part #JAKS-2239250S2
Catalog ref2239250
Catalog ref223-9250
Catalog ref0R9537
Catalog ref0R7594
Not sure it's the right fit? Call a specialist
(720) 445-6249
Talk to a tech or text a photo of your part tag — we'll confirm fitment before you buy
2239250 (223-9250) Caterpillar C15 / 3406E Loaded Cylinder Head – New, Stage 2 Inconel Exhaust
BrandJAK's Diesel
Part CategoryCylinder Heads
Engine MakeCaterpillar
Engine ModelC15 · C15 Acert · 3406E
ConditionNew
Stage / TierStage 2

New, fully loaded Stage 2 cylinder head for the Caterpillar 3406E, C15 and C15 ACERT, built to replace CAT 223-9250 (2239250). One universal casting covers both ACERT and pre-ACERT engines. Stage 2 adds Inconel exhaust valves — the middle ground between our Stage 1 stock replacement and Stage 3 full-Inconel head. It arrives assembled and ready to bolt on, with no core to send back.

What's Included

  • New cylinder head casting
  • New intake and exhaust valves (Stage 2 — standard intake, Inconel exhaust)
  • New valve springs, retainers and keepers
  • Valve guides and valve stem seals installed

Not included: head gasket set, head bolts, injectors, rocker assemblies. Pair it with our 3406E / C15 head bolt kit (PAI 340097).

Specifications

Replaces CAT 223-9250 (2239250) and cross-references below
Engine Caterpillar 3406E, C15, C15 ACERT
Condition New — no core
Assembly Loaded (valves, springs, retainers, keepers, guides, seals)
Valve package Stage 2 — standard intake, Inconel exhaust
Brand JAK's Diesel

Stage Comparison

Stage Intake valves Exhaust valves Best for
Stage 1 Standard Standard Stock-power replacement
Stage 2 Standard Inconel Hard-working fleet and owner-operator trucks
Stage 3 Inconel Inconel Tuned engines, high EGT, heavy pulling

Also available: Stage 1, Stage 3 and the Stage 6 CGI fire-ring head.

Fitment

Fits Caterpillar 3406E, C15 and C15 ACERT on-highway engines (ACERT and pre-ACERT) that use the 223-9250 head family. We confirm fitment by engine serial number (ESN) or casting number before every head ships.

Replaces / Cross-Reference Part Numbers

OEM and reman numbers: 2239250, 223-9250, 0R9537, 0R7594, 10R5985, 1427341, 1604347, 2454324, 2436741, 2635055, 3128347, 3180476, 20R2647, 20R2648, 20R0409, 20R1107, 20R1108, 20R1109, 20R1183, 10R9547, 2672060, 2672063

Shipping, Core & Warranty

  • No core charge, no core return. This is a new casting, not an exchange unit.
  • Freight: ships crated by LTL freight. Freight is free to a commercial address with a forklift or dock. Residential, liftgate and terminal delivery can be quoted — call before you order.
  • Local pickup: available in Henderson, CO by arrangement.
  • Warranty: 1 year against defects in materials and workmanship.

Frequently Asked Questions

Is this head new or remanufactured?

New. It is a new casting assembled with new valvetrain components — not a rebuilt core.

Do I have to send back a core?

No. There is no core charge and nothing to return.

What else do I need to install it?

Plan on a new head gasket set and head bolts for the C15. They are not included. Message us and we will match the right kit to your engine serial number.

How do I confirm it fits my C15?

Send us your engine serial number (ESN) or the casting number from your old head. We verify fitment against 223-9250 before the head ships.

What is the difference between Stage 1, 2 and 3 C15 heads?

All three use the same new casting. Stage 1 has standard intake and exhaust valves. Stage 2 adds Inconel valves on one side. Stage 3 uses Inconel on both intake and exhaust for engines that run high exhaust temperatures or extra power.

How long does delivery take?

Heads are crated and handed to the LTL carrier in 1–2 business days. Transit is typically 2–5 business days depending on your location.

Questions? Call JAK's Diesel at (720) 445-6249. See all Caterpillar C15 parts, C15 inframe kits or diesel cylinder heads.
