Home/All Cylinder Head Parts/3078380 Cummins N14 Loaded Cylinder Head – New, Stage 1
3078380 Cummins N14 loaded cylinder head - new, JAK's Diesel
Cummins · Models: N14

3078380 Cummins N14 Loaded Cylinder Head – New, Stage 1

Commercial diesel cylinder head. Match the listed part and engine identifiers before ordering.
Warranty DetailsJAK's DieselMay Qualify for Free Freight
$1,259.00
In stock — confirm dispatch timing 3 available
Fitment details

Want us to check the fit? Share any details you have below. All fields are optional. Your request will be included with your order, and a specialist may contact you before fulfillment.

Secure Checkout Review Return Policy Warranty Details Ask About Same-Day Shipping May Qualify for Free Freight
JAK'S Part #JAKS-3078380
Catalog ref060161
Catalog ref060161X-100
Catalog ref060161X100
Catalog ref3078360
Not sure it's the right fit? Call a specialist
(720) 445-6249
Talk to a tech or text a photo of your part tag — we'll confirm fitment before you buy
3078380 Cummins N14 Loaded Cylinder Head – New, Stage 1
BrandJAK's Diesel
Part CategoryCylinder Heads
Engine MakeCummins
Engine ModelN14
ConditionNew
Stage / TierStage 1

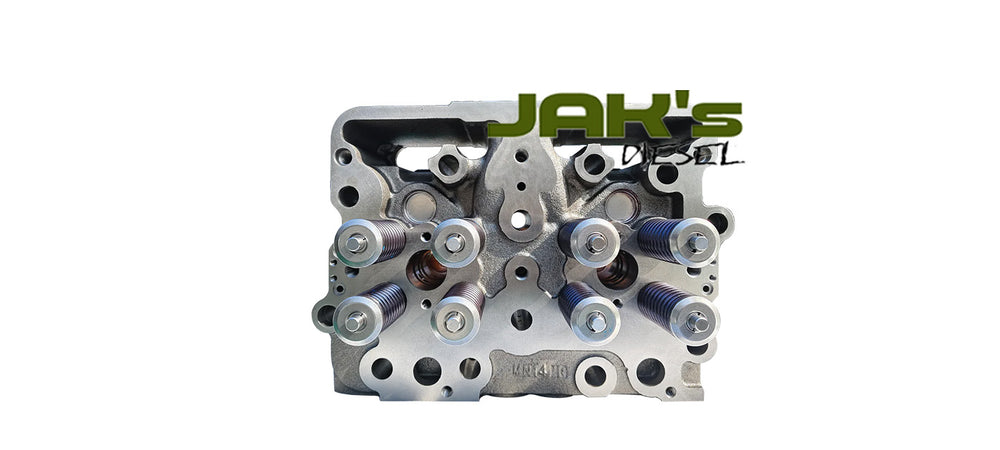

New, fully loaded cylinder head for the Cummins N14, N14 Celect and Celect Plus, built to replace Cummins 3078380. The N14 uses three heads per engine, each covering two cylinders — order one to replace a cracked head or three for a full top-end job. It arrives assembled and ready to bolt on, with no core to send back.

What's Included

  • New cylinder head casting
  • New intake and exhaust valves (Stage 1 standard intake and exhaust)
  • New valve springs, retainers and keepers
  • Valve guides and valve stem seals installed

Not included: head gasket set, head bolts, injectors, rocker assemblies. Ask us and we will quote the matching gasket set and bolt kit.

Specifications

Replaces Cummins 3078380 and cross-references below
Engines Cummins N14, N14 Celect, N14 Celect Plus
Heads per engine 3 (one per two cylinders)
Condition New — no core
Valve package Stage 1 — standard intake and exhaust
Brand JAK's Diesel

Fitment

Fits Cummins N14 mechanical, Celect and Celect Plus engines that use the 3078380 head. We confirm fitment by engine serial number (ESN) or casting number before every head ships.

Replaces / Cross-Reference Part Numbers

OEM and reman numbers: 3078380, 060161, 3078360, 3083981, 3084058, 3084060, 3084981, 3084992, 3406738, 3406739, 3406739RX, 3406742, 3406742NX, 3406742RX, 3406742X, 3411780, 3411813, 3411814, 3411814NX, 3411814RX, 3411817, 5469793

Aftermarket equivalents: 060161X-100, 060161X100, HBRN3078380VS, HCM3078380, HCM3078380VS, HD210C, N3078380, N3078380VS

Shipping, Core & Warranty

  • No core charge, no core return. This is a new casting, not an exchange unit.
  • Freight: ships crated by LTL freight. Freight is free to a commercial address with a forklift or dock. Residential, liftgate and terminal delivery can be quoted — call before you order.
  • Local pickup: available in Henderson, CO by arrangement.
  • Warranty: 1 year against defects in materials and workmanship.

Frequently Asked Questions

Is this head new or remanufactured?

New. It is a new casting assembled with new valvetrain components — not a rebuilt core.

Do I have to send back a core?

No. There is no core charge and nothing to return.

What else do I need to install it?

Plan on a new head gasket set and head bolts for the N14. They are not included. Message us and we will match the right kit to your engine serial number.

How do I confirm it fits my N14?

Send us your engine serial number (ESN) or the casting number from your old head. We verify fitment against 3078380 before the head ships.

How many heads does an N14 need?

Three. Each N14 head covers two cylinders, so a complete top end takes three heads.

How long does delivery take?

Heads are crated and handed to the LTL carrier in 1–2 business days. Transit is typically 2–5 business days depending on your location.

Questions? Call JAK's Diesel at (720) 445-6249. See all Cummins N14 parts or diesel cylinder heads.
