Home/All Cylinder Head Parts/3050617 (305-0617) Caterpillar C13 Loaded Cylinder Head – New, Stage 2 Inconel Exhaust

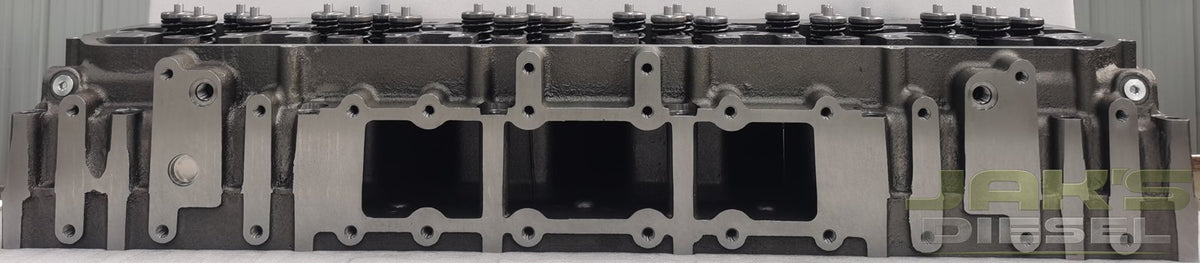

3050617 CAT C13 loaded cylinder head - new, JAK's Diesel
Caterpillar · Models: C13

3050617 (305-0617) Caterpillar C13 Loaded Cylinder Head – New, Stage 2 Inconel Exhaust

Commercial diesel cylinder head. Match the listed part and engine identifiers before ordering.
Warranty DetailsJAK's DieselMay Qualify for Free Freight
$3,699.00
In Stock
Fitment details

Want us to check the fit? Share any details you have below. All fields are optional. Your request will be included with your order, and a specialist may contact you before fulfillment.

Secure Checkout Review Return Policy Warranty Details May Qualify for Free Freight
JAK'S Part #JAKS-3050617S2
Catalog ref3050617
Catalog ref305-0617
Catalog ref2574095
Catalog ref10R2602
Not sure it's the right fit? Call a specialist
(720) 445-6249
Talk to a tech or text a photo of your part tag — we'll confirm fitment before you buy
3050617 (305-0617) Caterpillar C13 Loaded Cylinder Head – New, Stage 2 Inconel Exhaust
BrandJAK's Diesel
Part CategoryCylinder Heads
Engine MakeCaterpillar
Engine ModelC13
ConditionNew
Stage / TierStage 2

New, fully loaded Stage 2 cylinder head for the Caterpillar C13 ACERT, built to replace CAT 305-0617 (3050617) and reman 10R-2602. Stage 2 adds Inconel exhaust valves for better heat resistance. It arrives assembled and ready to bolt on, with no core to send back.

What's Included

  • New cylinder head casting
  • New intake and exhaust valves (Stage 2 — standard intake, Inconel exhaust)
  • New valve springs, retainers and keepers
  • Valve guides and valve stem seals installed

Not included: head gasket set, head bolts, injectors, rocker assemblies. Pair it with a C13 head gasket (PAI 331463).

Specifications

Replaces CAT 305-0617 (3050617), 10R-2602 and cross-references below
Engine Caterpillar C13 ACERT on-highway
Condition New — no core
Assembly Loaded (valves, springs, retainers, keepers, guides, seals)
Valve package Stage 2 — standard intake, Inconel exhaust
Brand JAK's Diesel

Fitment

Fits Caterpillar C13 ACERT on-highway engines, including serial prefixes KCB, JAM and LEE. The C13 head is not the same part as the C15 head. We confirm fitment by engine serial number (ESN) or casting number before every head ships.

Replaces / Cross-Reference Part Numbers

OEM and reman numbers: 3050617, 305-0617, 2574095, 10R2602, 10R3394, 10R6392, 10R9922, 20R1952, 2240878, 2408271, 2454030, 2454031, 2496672, 2572168, 2572170, 2655263, 2893211, 3009511, 3086358, 3358322, 3453752, 4842155, 4866227, 5945181

Shipping, Core & Warranty

  • No core charge, no core return. This is a new casting, not an exchange unit.
  • Freight: ships crated by LTL freight. Freight is free to a commercial address with a forklift or dock. Residential, liftgate and terminal delivery can be quoted — call before you order.
  • Local pickup: available in Henderson, CO by arrangement.
  • Warranty: 1 year against defects in materials and workmanship.

Frequently Asked Questions

Is this head new or remanufactured?

New. It is a new casting assembled with new valvetrain components — not a rebuilt core.

Do I have to send back a core?

No. There is no core charge and nothing to return.

What else do I need to install it?

Plan on a new head gasket set and head bolts for the C13. They are not included. Message us and we will match the right kit to your engine serial number.

How do I confirm it fits my C13?

Send us your engine serial number (ESN) or the casting number from your old head. We verify fitment against 305-0617 before the head ships.

Is the C13 head the same as the C15 head?

No. The C13 and C15 use different cylinder heads. Send us your serial number if you are not sure which engine you have.

How long does delivery take?

Heads are crated and handed to the LTL carrier in 1–2 business days. Transit is typically 2–5 business days depending on your location.

Questions? Call JAK's Diesel at (720) 445-6249. See all Caterpillar C11 & C13 parts or diesel cylinder heads.
